24 hours 100% active balancing no waste energy The topology can be infinitely polarizable 8-10A fast balancing,10-20mv after balancing Detecting bad cells and revive old battery
Key Features and Specifications:
* Use for lead acid battery (2V/6V/12V) can use in series without limit
* Battery capacity:50-1000AH
* Balance current:related to battery volt differences,350MV volt differences,balance current 1A.
* Maximal balance current:>8A
* Balancing accuracy: After balancing,max volt differences of pack gonna lower than 50MV,while
battery lead length 1M
*Convert efficiency:While balance current 1A, efficiency >96%
* Static self consumption: about 10mA
* Withstand DC volt between battery side & balance wire side of balancer:1000VDC
* Insulation resistance with outer shell/lead wires:>1000mohm
Balancer Dimension &Weight &Modules:
| 1S | 85*40*25MM | 0.1KG |
| 4S | 15*7*2CM | 0.4KG |
| 5S | 18.4*6.4*2CM | 0.5KG |
| 6S | 22*7*2CM | 0.6KG |
| 7S | 26.2*7*2 | 0.7KG |

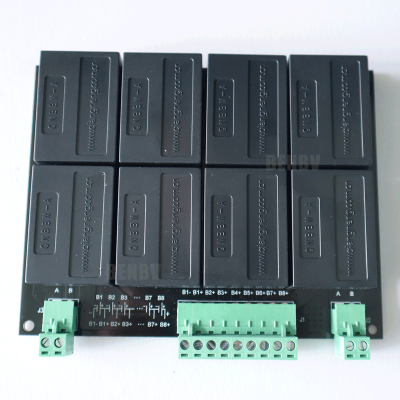

| 8S | 15*11.7*2CM | 0.8KG |
Balancer led indication:
| No | Left light | Right light | Status | Remarks |
| 1 | On Green | Normal | One separate light stands for this status | |
| 2 | On Green | Discharging the cell | One separate light stands for this status | |
| 3 | On Red | Charging the cell | One separate light stands for this status | |
| 4 | On Red | Over balance current Protection and short circuit protection | Balance current>2.8A Release in 10 seconds | |
| 5 | Off | Off | Disconnected or defective | |
| 6 | On Green | Off | Balanced | Balance is complete forthis battery |
Balancer Advantages:
* Light weight /compact size /less shipping cost
* Warranty:3 Years, with USA/China Patents
* Fast delivery within 2-3business day/with stock
* Revive old batteries/balance the battery volt 24hour
* No battery capacity series limits
*Automatic Self battery management/monitor
* Prevent overcharging/over-discharging (maximize use capacity )
* Wide battery use application:DIY power wall/EV bus/Electric Vehicle/Solar Storage/
telecommunication base/Solar system/RV/forklift /car audio etc (More applications
wait for u to discover)
*Easy installation ,no harm to battery pack *Free replacement for quality issue
Balancer Wire diagram:
